Automatic Coil Uncoiling

LEBON Automatic Coil Uncoiling System is designed to automatically unwind and feed metal coils into cutting, grinding, brushing, polishing or coating lines. With stable coil support, smooth feeding and optional tension control, it helps improve production efficiency, reduce manual handling and ensure continuous metal coil processing.

Product Details

What is Automatic Coil Uncoiling?

Automatic Coil Uncoiling is the process of automatically opening and feeding metal coils into a production line. It is usually the first section of a coil processing line, such as a cut-to-length line, grinding line, brushing line, polishing line or coating line.

The coil is loaded onto an uncoiler, and the machine gradually unwinds the coil while controlling feeding speed, coil tension and material direction. This helps the metal strip enter the next process smoothly and continuously.

Product overview

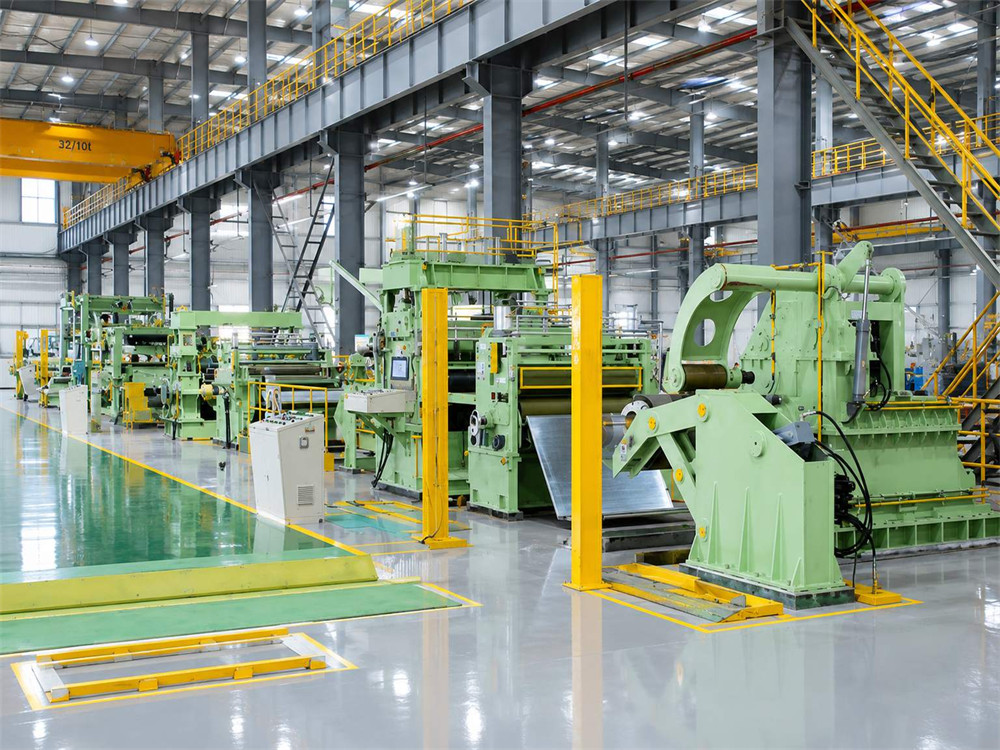

The LEBON Automatic Coil Uncoiling System is designed to automatically unwind and feed metal coils into continuous production lines. It is commonly used as the first section of cut-to-length lines, grinding lines, brushing lines, polishing lines, coating lines and other metal sheet processing systems.

The system supports smooth coil opening, stable feeding direction and controlled material tension, helping the coil enter the next process safely and continuously. It is suitable for stainless steel, aluminum, copper, carbon steel and other metal coils.

With a heavy-duty uncoiler structure, reliable coil expansion mechanism, adjustable feeding speed and optional tension control system, the machine helps reduce manual handling, improve production efficiency and protect the coil surface during processing. The configuration can be customized according to coil width, coil weight, inner diameter, outer diameter and production line requirements.

Working Process

1. Coil Loading

The metal coil is loaded onto the uncoiler mandrel by crane, forklift or coil car. The coil position is adjusted to align with the production line center.

2. Mandrel Expansion

The uncoiler mandrel expands to firmly hold the inner diameter of the coil. This ensures stable coil support during unwinding.

3. Coil Opening

The coil head is opened and guided into the next section of the production line, such as leveling, grinding, brushing, polishing or cutting.

4. Automatic Unwinding

The uncoiler rotates automatically to unwind the coil continuously. The feeding speed can be adjusted according to the production line requirement.

5. Tension Control

The system controls coil tension to keep the strip feeding smoothly and prevent looseness, slipping or material deviation.

6. Feeding to Next Process

The metal strip is fed into the next machine section, such as a leveler, feeder, grinding machine, brushing machine, polishing line or cut-to-length line.

7. Continuous Production

The uncoiling system works together with the full production line to ensure stable, continuous and efficient metal coil processing.

Application

Cut-to-length production lines
Metal coil leveling lines
Stainless steel grinding lines
No.4 brushing lines
Hairline finishing lines
8K mirror polishing lines
Scotch Brite finishing lines
Anti-fingerprint coating lines
Slitting and recoiling lines
Coil-to-sheet processing lines
Stainless steel coil processing
Aluminum coil processing
Copper coil processing
Carbon steel coil processing
Decorative metal sheet production
Appliance panel production
Elevator panel material processing
Architectural metal sheet production

Short description

LEBON Automatic Coil Uncoiling System is designed to automatically unwind and feed metal coils into continuous processing lines. With stable coil support, adjustable feeding speed and optional tension control, it helps improve production efficiency and ensure smooth material feeding for cut-to-length, grinding, brushing, polishing and coating lines.
