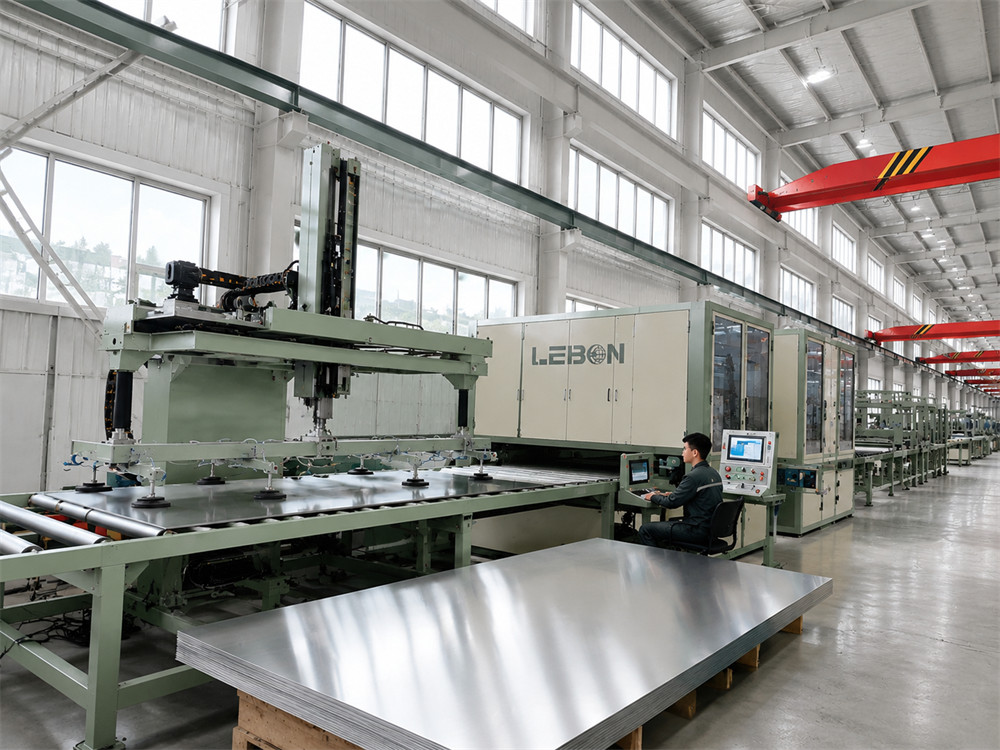

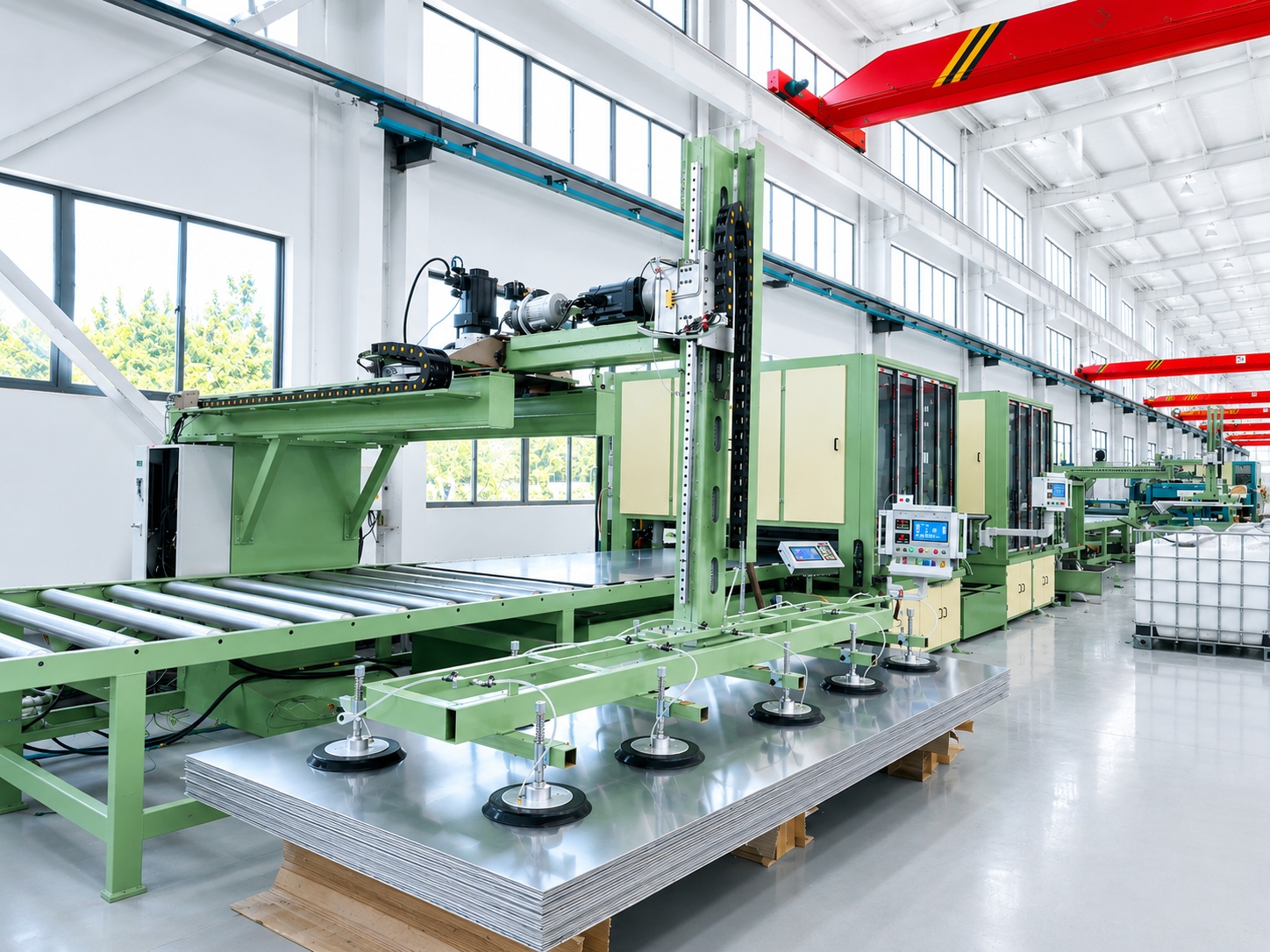

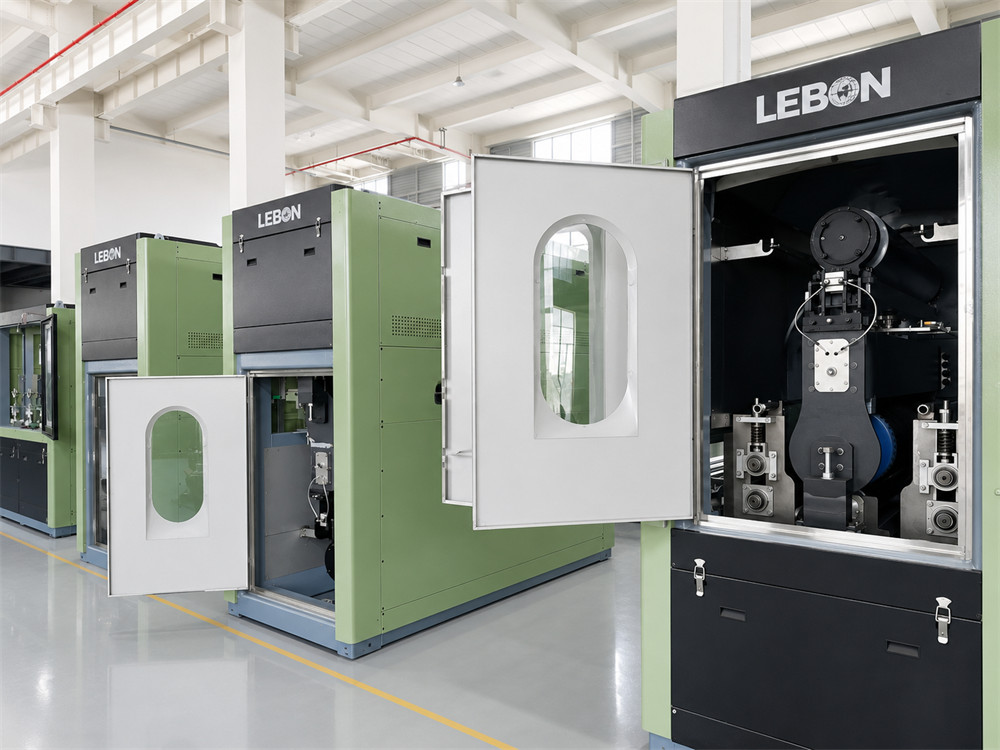

Metal Sheet Brushing Machine

LEBON Metal Sheet Brushing Machine is designed for surface brushing, grinding and finishing of metal sheets and plates to create a uniform satin, hairline or decorative brushed texture. It is suitable for stainless steel, aluminum, copper, titanium and other flat metal materials, widely used in decorative panels, elevator panels, appliance panels, signage, architectural decoration and high-quality metal surface finishing applications.

Product Details

Prodcut overview

The LEBON Metal Sheet Brushing Machine is designed for high-quality surface brushing, grinding and finishing of flat metal sheets and plates. It is suitable for stainless steel, aluminum, copper, titanium and other metal materials, helping customers achieve a uniform satin, hairline or decorative brushed surface.

The machine uses abrasive belt or brush roller technology to remove minor scratches, oxide marks and surface defects while creating a consistent surface texture. It can be configured for different finishing requirements, including No.4 brushing, Hairline finish, satin brushing and decorative surface treatment.

With stable feeding, adjustable brushing pressure, variable conveyor speed and optional cleaning, drying, dust collection or protective film laminating systems, the machine provides efficient and consistent metal sheet surface finishing. It is widely used for decorative metal sheets, elevator panels, appliance panels, signage, architectural panels, furniture panels and premium metal products.

Key Features

Produces uniform satin, hairline and decorative brushed metal surfaces
Suitable for stainless steel, aluminum, copper, titanium and other flat metal sheets
Heavy-duty machine frame for stable and precise brushing operation
High-speed abrasive belt or brush roller system for efficient surface finishing
Adjustable brushing pressure for different materials, thicknesses and finish requirements
Variable conveyor speed for flexible surface texture control
Stable feeding system to ensure straight and consistent brushing direction
Reliable belt tracking or brush roller control to prevent uneven surface marks
Multiple abrasive grit options for coarse brushing, fine brushing and surface correction
Wet or dry processing options available according to production requirements
Cooling or dust collection system available for cleaner and safer operation
Cleaning and drying unit removes dust, oil, residue and metal particles
Optional protective film laminating system to protect the finished surface
PLC and inverter control system for easy operation and stable speed adjustment
Customizable working width, thickness range, brushing units and production layout
Suitable for decorative panels, elevator panels, appliance panels, signage, furniture panels and architectural metal products

Working Process

Feeding Section

The metal sheet or plate is fed into the machine through the conveyor system. Stable feeding ensures smooth movement and keeps the brushing direction straight and consistent.

Surface Grinding Section

The abrasive belt or brush roller removes minor scratches, oxide marks and surface defects from the metal surface. This step helps prepare the material for uniform brushing.

Brushing Section

The brushing unit creates a satin, hairline or decorative brushed texture on the metal surface. Brushing pressure, abrasive grit and conveyor speed can be adjusted according to the required finish.

Cooling or Dust Collection Section

For wet processing, coolant or grinding liquid helps reduce heat and improve surface quality. For dry processing, a dust collection system removes metal dust and keeps the working area cleaner.

Cleaning and Drying Section

After brushing, the surface is cleaned to remove dust, oil, residue and metal particles. The drying unit keeps the finished surface clean and ready for further processing.

Film Laminating Section

If required, a protective film is applied to the finished brushed surface to prevent scratches during handling, cutting, transportation and installation.

Finished Metal Surface

The final metal sheet has a uniform brushed texture, suitable for decorative panels, elevator panels, appliance panels, signage, furniture panels and architectural metal products.

Applications

Stainless steel decorative sheets
Aluminum decorative panels
Copper and titanium surface finishing
Elevator panels and cabin interiors
Home appliance panels
Kitchen equipment and cabinets
Architectural wall and ceiling panels
Signage and advertising boards
Furniture and display fixtures
Metal doors and frames
Interior decoration materials
Lighting fixture components
Automotive metal parts
Electronic product shells
Pre-treatment before coating, laminating or further processing

LEBON Metal Sheet Brushing Machine is designed for brushing, grinding and finishing stainless steel, aluminum, copper, titanium and other flat metal sheets. It produces a uniform satin, hairline or decorative brushed surface, widely used for elevator panels, appliance panels, signage, architectural decoration, furniture panels and high-quality metal surface finishing applications.
