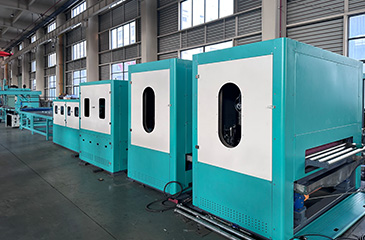

The LEBON Belt-type 8K Mirror Stainless Steel Polishing Machine is a classic and widely used solution for high-quality mirror finishing of stainless steel sheets and plates. As the first-generation and most universal structure of 8K mirror polishing machines, the belt-type design drives the polishing heads through a stable belt transmission system, ensuring smooth rotation, reliable production performance and lower energy consumption. This machine is designed to produce a bright, uniform and highly reflective 8K mirror finish on stainless steel surfaces. Through continuous grinding, polishing, compound circulation, cleaning and drying processes, the machine can achieve excellent surface brightness, low roughness and clear image reflection, making it suitable for high-end decorative stainless steel applications.
Compared with pneumatic-pressure and servo-driven polishing systems, the belt-type mirror polishing machine features a simpler structure, lower maintenance cost and proven long-term production stability. It is an ideal choice for manufacturers looking for a reliable and cost-effective 8K mirror polishing solution.
In stainless steel surface finishing, 8K refers to a high-grade mirror polishing standard. The finished surface features high reflectivity, low roughness and clear mirror-like reflection.
For most premium decorative applications, an 8K finish provides excellent surface quality, brightness and visual appearance. It is widely used for elevator panels, architectural decoration, interior cladding, home appliance panels and other high-end stainless steel products.
The belt-type structure is one of the most mature and practical designs for 8K mirror polishing equipment. Compared with other transmission methods, belt transmission offers several advantages:
Stable polishing head rotation speed
Smooth and reliable machine operation
Lower motor load and reduced energy consumption
Stable long-term production performance
Simple structure and easy maintenance
Suitable for continuous stainless steel sheet polishing
Mature technology with wide application range
The belt-driven system helps reduce mechanical vibration during polishing and ensures consistent pressure and rotation performance, which is essential for achieving a uniform 8K mirror surface.
Stainless steel sheets or plates are selected before processing. The surface should be flat, clean and free from obvious scratches, oxidation marks or serious defects.
Grinding wheels, abrasive discs or Scotch-Brite discs are used to remove surface oxide layers, weld marks, scratches and other visible defects.
Wool polishing discs or suitable polishing materials are used to reduce grinding marks and improve surface flatness.
Fine polishing media, such as sponge wheels or special polishing materials, are applied to increase surface brightness and prepare the material for final mirror finishing.
Polishing paste, nano-alumina polishing liquid or special polishing compound is used together with high-speed polishing heads to achieve a bright and highly reflective 8K mirror surface.
After polishing, the material is cleaned and dried to remove polishing residues and moisture. A protective film can be applied to protect the mirror surface during handling, transportation and further processing.
Classic belt-type 8K mirror polishing machine structure
Belt-driven polishing heads with stable rotation speed
Lower motor power loss and improved energy efficiency
Stable production performance for continuous operation
High-reflective 8K mirror finish
Low surface roughness and clear image reflection
Suitable for stainless steel sheets and plates
Multiple polishing head groups for different polishing stages
Adjustable polishing pressure and conveying speed
Wet polishing process for better cooling and surface stability
Polishing compound filtration and recycling system
Integrated cleaning and drying system
Optional protective film laminating system
Durable structure and easy maintenance
The LEBON Belt-type 8K Mirror Polishing Machine is designed to achieve:
| Item | Reference Standard |
|---|---|
| Surface Finish | 8K mirror finish |
| Surface Roughness | Ra ≤ 0.05 μm |
| Gloss Level | 700–900 GU or higher |
| Reflective Effect | Clear mirror-like reflection |
| Surface Quality | Uniform brightness, no obvious scratches, vibration marks or water marks |
The belt-type 8K mirror stainless steel polishing machine is widely used for:
Elevator panels
Escalator decorative panels
Interior decorative stainless steel sheets
Architectural cladding
Building facades
Home appliance panels
Kitchen equipment
Medical equipment
Chemical equipment
Decorative stainless steel products
Base material for etching, PVD coating and color stainless steel processing
The LEBON Belt-type 8K Mirror Stainless Steel Polishing Machine is a mature and universal solution for stainless steel mirror finishing. With belt-driven polishing heads, stable rotation speed, low energy consumption and reliable continuous production performance, it produces a bright, smooth and highly reflective 8K mirror surface for premium decorative and industrial applications.
A belt-type mirror polishing machine uses a belt transmission system to drive the polishing heads, providing stable rotation, reliable performance and easy maintenance for continuous stainless steel mirror finishing.
Belt transmission offers stable polishing speed, lower energy consumption, reduced vibration and long-term production reliability.
Yes. It is designed to achieve high-reflective 8K mirror finish on stainless steel sheets and plates.
The machine is mainly designed for stainless steel sheets, plates and coils. It can also be customized for other metal materials according to production requirements.
Please, feel free to contact us if you need any further information.
