Product Overview

The LEBON Metal Coil Grinding Machine is designed for continuous surface grinding, brushing and finishing of metal coils. It is suitable for stainless steel, aluminum, copper and other flat coil materials, helping customers remove minor scratches, oxide marks and surface defects while producing a uniform and decorative surface finish.

The machine is usually configured with an uncoiling system, coil feeding system, grinding or brushing units, cleaning and drying section, film laminating system and recoiling system. It can be used to produce different surface effects such as No.4 finish, Hairline finish, satin brushing and decorative grinding, depending on the abrasive belt, brush roller and machine configuration.

With stable coil feeding, adjustable grinding pressure, variable line speed and continuous processing design, the machine helps improve production efficiency and surface consistency for large-volume metal coil finishing. It is widely used for decorative metal coils, elevator panels, appliance panels, architectural sheets, kitchen equipment, signage materials and high-quality metal surface processing applications.

Key features

• Continuous coil-to-coil grinding and brushing production

• Suitable for stainless steel, aluminum, copper and other metal coils

• Produces uniform No.4, Hairline, satin and decorative surface finishes

• Automatic uncoiling and recoiling system for continuous operation

• Stable coil feeding system to ensure straight and consistent grain direction

• High-speed abrasive belt grinding units for efficient surface processing

• Adjustable grinding pressure for different coil materials and thicknesses

• Variable line speed for flexible production capacity and surface control

• Stable belt tracking system to prevent belt deviation and uneven grinding marks

• Multiple abrasive grit options for coarse grinding, fine brushing and surface correction

• Wet or dry grinding options available according to customer requirements

• Cooling or dust collection system to improve surface quality and workshop environment

• Cleaning and drying section to remove dust, oil, residue and moisture

• Optional protective film laminating system before recoiling

• PLC and inverter control system for easy operation and stable speed adjustment

• Customizable working width, coil thickness range, grinding head quantity and line layout

• Suitable for large-volume decorative metal coil processing and surface finishing applications

What is Metal Coil Grinding Machine

A Metal Coil Grinding Machine is a continuous surface finishing machine used to grind, brush and polish metal coils before they are cut into sheets or used in production. It processes materials such as stainless steel, aluminum, copper and other metal coils to remove surface defects and create a uniform finish, such as No.4, Hairline, satin or decorative brushed texture.

The machine usually includes uncoiling, feeding, grinding/brushing, cleaning, drying, film laminating and recoiling sections. It is widely used for decorative metal coils, elevator panels, appliance panels, architectural sheets, kitchen equipment and high-quality metal surface finishing applications.

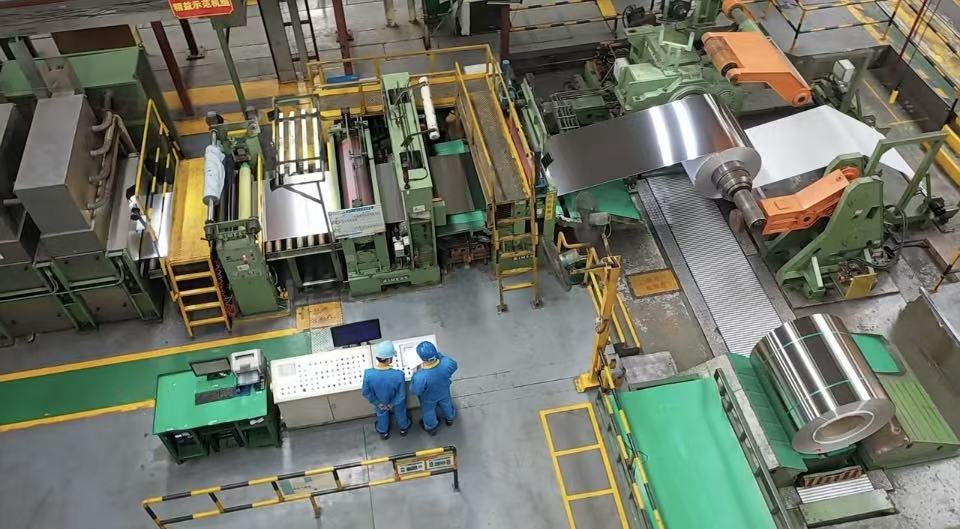

Working Process

Uncoiling Section

The metal coil is loaded onto the uncoiler and opened automatically. The uncoiling system provides continuous material feeding for stable coil-to-coil production.

Coil Feeding Section

The coil is guided into the machine through the feeding and leveling system. Stable feeding helps keep the material flat and ensures a straight processing direction.

Surface Grinding Section

High-speed abrasive belts grind the metal coil surface to remove minor scratches, oxide marks, stains and surface defects. Grinding pressure and belt grit can be adjusted according to the required finish.

Brushing / Finishing Section

The brushing section creates a uniform No.4, Hairline, satin or decorative surface texture. Conveyor speed, belt speed and pressure are controlled to achieve consistent grain direction and surface quality.

Cooling or Dust Collection Section

For wet grinding, coolant or grinding liquid is supplied to reduce heat and improve surface smoothness. For dry grinding, a dust collection system removes metal dust and keeps the working environment cleaner.

Cleaning and Drying Section

After grinding and brushing, the coil surface is cleaned to remove dust, oil, residue and metal particles. The drying unit prevents water marks and prepares the surface for laminating or recoiling.

Film Laminating Section

If required, a protective film is applied to the finished coil surface to prevent scratches during recoiling, transportation, cutting and further processing.

Recoiling Section

The finished metal coil is recoiled automatically after surface finishing. The final coil has a uniform brushed or ground surface and is ready for storage, shipment or further production.

Application

• Decorative stainless steel coils

• Aluminum coil surface finishing

• Copper coil grinding and brushing

• Elevator panel production

• Home appliance panels

• Architectural wall and ceiling panels

• Kitchen equipment materials

• Signage and advertising materials

• Metal furniture panels

• Interior decoration materials

• Automotive metal parts

• Coil-to-sheet processing lines

• Pre-treatment before coating or laminating

• Large-volume No.4, Hairline and satin finish production

Why Choose LEBON

LEBON Metal Coil Grinding Machine is designed for continuous coil-to-coil surface grinding, brushing and finishing of stainless steel, aluminum, copper and other metal coils. With professional experience in metal surface finishing equipment, LEBON helps customers achieve stable coil processing, uniform surface texture and efficient large-volume production.

The machine can be customized according to coil material, thickness, working width, surface finish and production capacity. With automatic uncoiling and recoiling, stable feeding, adjustable grinding pressure, variable line speed, cleaning, drying and optional film laminating systems, LEBON provides a complete coil surface finishing solution from machine design to installation, training and after-sales support.
