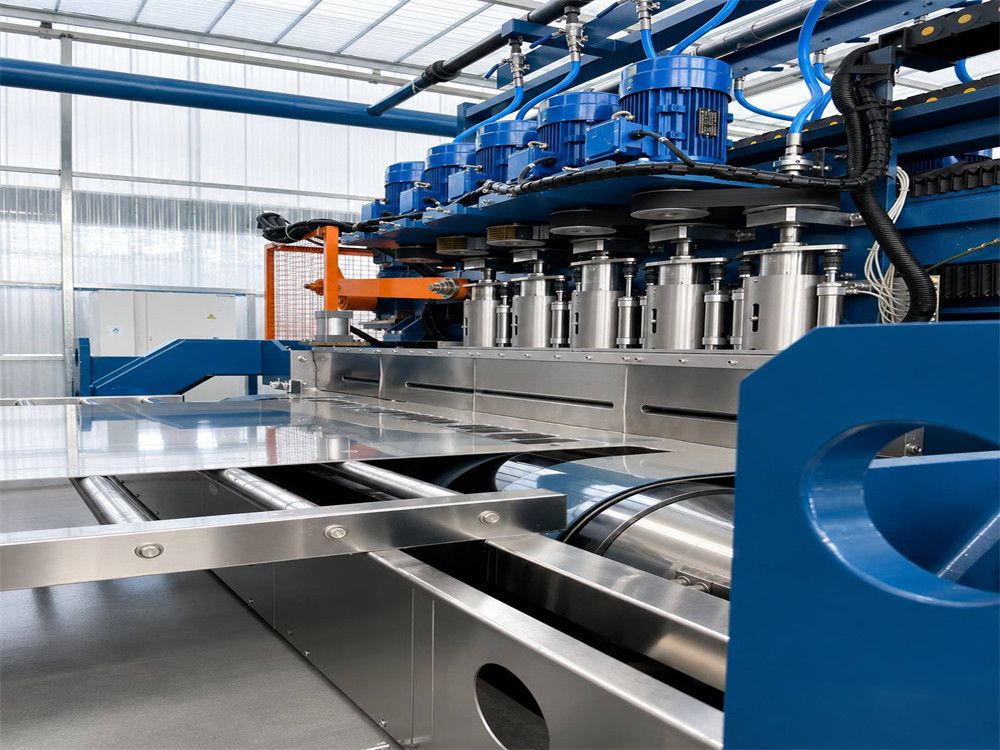

Pneumatic-pressure 8K Mirror Polishing Machine

The LEBON Pneumatic-pressure 8K Mirror Polishing Machine is an advanced stainless steel mirror finishing solution designed for high-brightness 8K surface polishing of stainless steel sheets, plates and coils. Unlike the traditional belt-type polishing machine, this model adopts a pneumatic direct-connected polishing head structure, where the polishing heads are controlled by air cylinders instead of belt transmission. With pneumatic pressure control, each polishing head can apply stable and adjustable pressure to the stainless steel surface, ensuring smooth polishing performance, uniform brightness and consistent mirror reflection. This design is especially suitable for customers who require flexible pressure adjustment, stable polishing quality and efficient production for high-end stainless steel surface finishing.

Product Details

Pneumatic pressure 8K mirror polishing machine is designed for stainless steel sheets and plates with air-cylinder-driven polishing heads to achieve stable pressure control and high-quality mirror finishing.

Pneumatic-pressure Design

The pneumatic-pressure structure uses air cylinders to control the polishing heads directly. Instead of relying on a belt-driven transmission structure, the pneumatic system provides more direct and responsive pressure control during the polishing process.

This design helps the machine maintain stable contact between the polishing head and the stainless steel surface, which is essential for achieving a smooth, low-roughness and high-reflective 8K mirror finish.

Key Advantages of Pneumatic-pressure System

Direct pneumatic control of polishing heads
Air-cylinder-driven polishing pressure adjustment
More responsive pressure control compared with traditional structures
Stable polishing contact with the workpiece surface
Reduced influence from belt wear or belt tension variation
Uniform polishing pressure for consistent mirror brightness
Suitable for different stainless steel surface conditions
Easy adjustment for coarse polishing, medium polishing and fine polishing
Stable 8K mirror finish quality
Improved surface consistency in continuous production

What Is 8K Mirror Finish?

In stainless steel surface finishing, 8K refers to a high-grade mirror polishing standard. An 8K finish features high reflectivity, low surface roughness and clear mirror-like image reflection.

For most high-end decorative applications, 8K finishing already provides excellent brightness and surface quality. It is widely used in elevator panels, architectural decoration, interior cladding, home appliance panels and premium stainless steel products.

Working Process

1. Material Preparation

Stainless steel sheets, plates or coils are selected according to production requirements. The material surface should be flat, clean and free from obvious scratches, oxidation marks or serious defects.

2. Coarse Grinding

Grinding wheels, abrasive discs or Scotch-Brite discs are used to remove surface oxide layers, weld marks, scratches and other visible defects.

3. Medium Polishing

Wool polishing discs or suitable polishing materials are used to remove coarse grinding marks and improve surface flatness.

4. Fine Polishing

Fine polishing materials, such as sponge wheels or professional polishing media, are applied to enhance surface brightness and prepare the material for final mirror finishing.

5. Pneumatic Mirror Polishing

During mirror polishing, the pneumatic-pressure system controls the polishing heads through air cylinders. Polishing paste, nano-alumina polishing liquid or special polishing compound is used to achieve a bright, smooth and highly reflective 8K mirror surface.

6. Cleaning, Drying and Film Laminating

After polishing, the material is cleaned and dried to remove polishing residues and moisture. A protective film can be applied to protect the mirror surface during handling, transportation and further processing.

Key Features

Pneumatic-pressure 8K mirror polishing machine structure
Air-cylinder-driven direct-connected polishing heads
No belt transmission for polishing head pressure control
Stable and adjustable polishing pressure
Fast response and flexible polishing control
High-reflective 8K mirror finish
Low surface roughness and clear image reflection
Suitable for stainless steel sheets, plates and coils
Multiple polishing head groups for continuous processing
Wet polishing process for cooling and stable surface quality
Polishing compound filtration and recycling system
Adjustable conveying speed and polishing pressure
Automatic thickness adjustment and touch screen control
Integrated cleaning and drying system
Optional protective film laminating system
Durable structure for long-term production

Surface Quality

The LEBON Pneumatic-pressure 8K Mirror Polishing Machine is designed to achieve:

Item	Reference Standard
Surface Finish	8K mirror finish
Surface Roughness	Ra ≤ 0.05 μm
Gloss Level	700–900 GU or higher
Reflective Effect	Clear mirror-like reflection
Surface Quality	Uniform brightness, no obvious scratches, vibration marks or water marks
Applicable Material	Stainless steel sheets, plates and coils

Applications

The pneumatic-pressure 8K mirror polishing machine is widely used for:

Elevator panels
Escalator decorative panels
Interior decorative stainless steel sheets
Architectural cladding
Building facades
Home appliance panels
Kitchen equipment
Medical equipment
Chemical equipment
Decorative stainless steel products
Base material for etching, PVD coating and color stainless steel processing

Short Description

The LEBON Pneumatic-pressure 8K Mirror Polishing Machine is an advanced stainless steel mirror finishing machine using air-cylinder-driven polishing heads instead of a traditional belt transmission structure. With stable pneumatic pressure control, flexible adjustment and reliable continuous production performance, it produces a bright, smooth and highly reflective 8K mirror surface for premium decorative and industrial stainless steel applications.

FAQ

Q1: What is a pneumatic pressure mirror polishing machine?

It is a polishing machine that uses air-cylinder-driven pressure control instead of belt transmission.

Q2: What is the advantage of pneumatic pressure system?

It provides stable polishing pressure, better surface consistency and faster response control.

Q3: Can it achieve 8K mirror finish?

Yes, it can achieve high-gloss 8K mirror surface on stainless steel.

Q4: What materials can it process?

Stainless steel sheets, plates and coils.
