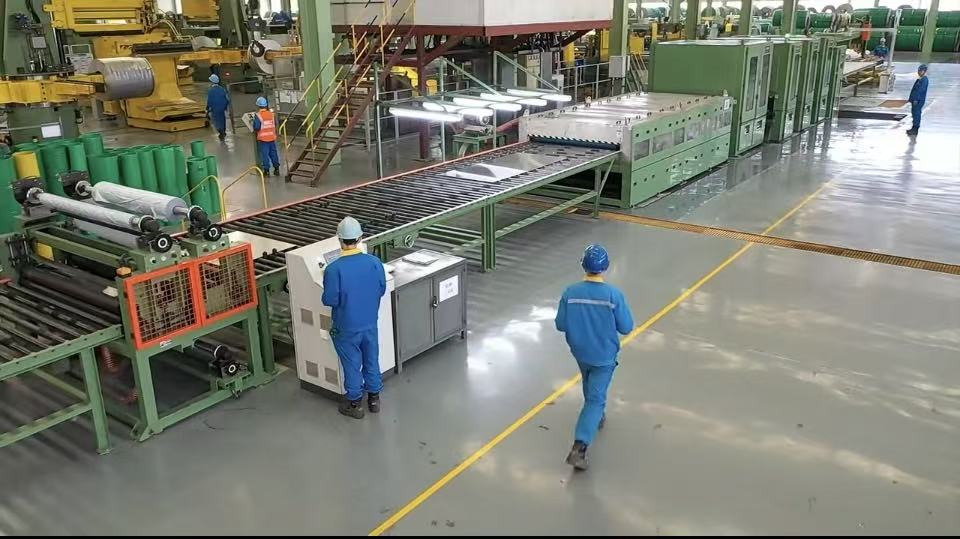

Belt HL Brushing Machine

LEBON Belt HL Brushing Machine is designed to produce a long, straight and uniform Hairline / HL brushed finish on stainless steel sheets, plates and coils. It uses high-speed abrasive belts to create a fine continuous linear texture, giving the metal surface a premium decorative appearance.

Product Details

What is Belt HL Brushing Machine

A Belt HL Brushing Machine is a metal surface finishing machine designed to produce a long, straight and uniform Hairline / HL brushed finish on stainless steel sheets, plates or coils. The machine uses high-speed abrasive belts to continuously brush the metal surface, creating a fine linear texture with stable grain direction and consistent surface appearance.

Technically, the final Hairline effect is controlled by abrasive belt grit, belt speed, conveyor feeding speed, brushing pressure and belt tracking accuracy. Fine abrasive belts, commonly around G240–G400, are often used for HL finishing depending on the customer’s required surface texture. The machine can be equipped with adjustable pressure control, variable speed control, wet or dry processing system, dust collection or cooling system, cleaning and drying section, and optional protective film laminating unit.

Compared with No.4 finish, HL finish has a longer, finer and more continuous line pattern, making it suitable for high-end decorative stainless steel applications such as elevator panels, home appliance panels, architectural wall panels, kitchen equipment, stainless steel doors and interior decoration materials.

Product Overview

The LEBON Belt HL Brushing Machine is a professional surface finishing machine for stainless steel Hairline processing. Compared with No.4 finish, HL finish has a longer, finer and more directional grain effect, making it suitable for high-end decorative stainless steel products.

With stable feeding, adjustable belt pressure, variable conveyor speed and accurate belt tracking, the machine can produce consistent Hairline texture across the full sheet width. It can also be equipped with wet or dry processing, cleaning, drying and protective film laminating systems according to customer requirements.

Key Features

Produces long, straight and uniform Hairline / HL finish
Uses high-speed abrasive belt brushing system
Suitable for stainless steel sheets, plates and coils
Adjustable brushing pressure for different material thicknesses
Variable conveyor speed for flexible line texture control
Stable abrasive belt tracking to prevent belt deviation marks
Multiple abrasive belt grit options for different HL effects
Wet or dry processing options available
Cooling or dust collection system for cleaner operation
Cleaning and drying unit for clean finished surface
Optional protective film laminating after brushing
PLC and inverter control for easy operation
Customizable working width, thickness range and machine layout

Working Progress

1. Material Feeding

The stainless steel sheet, plate or coil is fed into the machine through the conveyor system. Stable feeding keeps the material flat and ensures the Hairline direction remains straight and continuous.

2. Surface Pre-Grinding

The metal surface is lightly ground to remove minor scratches, oxide marks and surface defects. This step prepares the material for a clean and uniform HL brushed finish.

3. Belt HL Brushing

High-speed abrasive belts brush the stainless steel surface to create long, fine and continuous Hairline lines. The final texture can be controlled by abrasive belt grit, belt speed, conveyor speed and brushing pressure.

4. Cooling or Dust Control

For wet-type machines, coolant or grinding liquid is supplied to reduce heat and prevent surface burning marks. For dry-type machines, a dust collection system can be added to remove metal dust and keep the workshop cleaner.

5. Surface Cleaning

After brushing, the surface is cleaned to remove grinding dust, oil, abrasive residue and metal particles.

6. Drying Section

The cleaned surface passes through the drying unit to remove moisture and prevent water marks.

7. Protective Film Laminating

If required, a protective film is applied to the finished Hairline surface to prevent scratches during handling, cutting, transportation and further processing.

8. Finished HL Surface Output

The finished stainless steel surface has a long, straight and uniform Hairline texture, suitable for elevator panels, appliance panels, architectural decoration and high-end stainless steel products.
