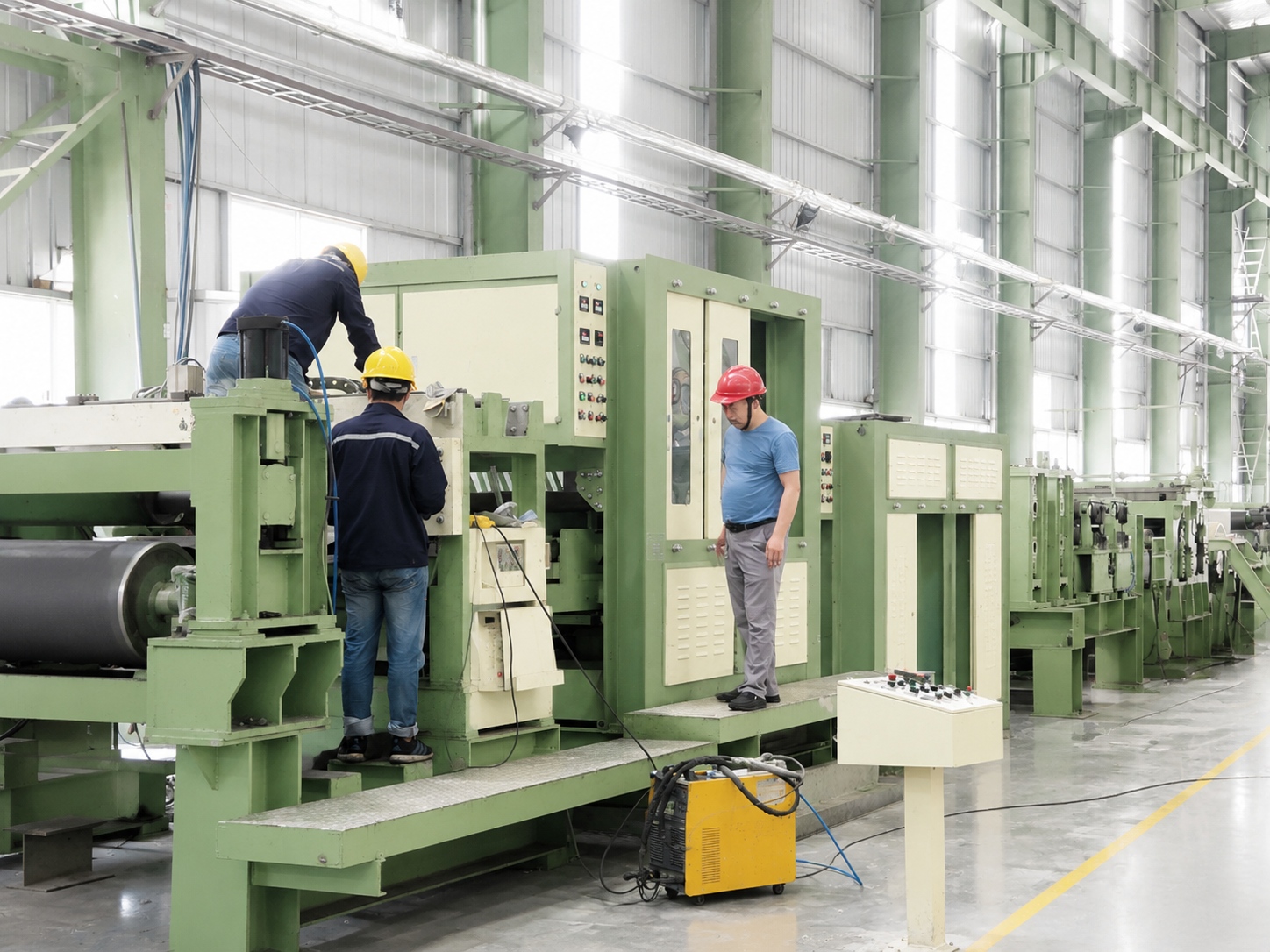

Titanium Surface Mirror Buffing Machine

Mirror Polishing Machine is specially designed for titanium metal sheets and plates to achieve a highly reflective, premium mirror finish with exceptional surface clarity and uniformity. Through advanced grinding and precision buffing technology, the machine delivers a smooth, distortion-free mirror effect with outstanding brightness and consistency.

Product Details

Titanium mirror polishing machine is specially designed for high-gloss surface finishing of titanium sheets and plates to achieve 8K mirror reflectivity. Mirror Polishing Machine is specially designed for titanium metal sheets and plates to achieve a highly reflective, premium mirror finish with exceptional surface clarity and uniformity. Through advanced grinding and precision buffing technology, the machine delivers a smooth, distortion-free mirror effect with outstanding brightness and consistency.

Titanium metal is widely used in high-end industries such as aerospace, architecture, electronics, medical equipment, and food-grade applications due to its excellent strength, corrosion resistance, lightweight properties, and premium metallic appearance. Mirror polishing of titanium surfaces not only enhances the visual quality and surface smoothness of the material, but also increases its value for further deep-processing applications such as PVD coating, decorative finishing, precision fabrication, and other high-end industrial manufacturing processes.

After passing through the grinding section, titanium sheets enter the polishing section, where polishing compound is evenly applied across the surface. High-speed rotating buffing felts continuously polish the material until a deep mirror reflection is achieved. The entire process is engineered to maintain stable polishing quality while minimizing vibration marks, surface defects, and polishing inconsistencies.

The polishing compound circulation system continuously supplies compound to the workpiece surface, while the integrated filtration and recycling unit automatically cleans and reuses the compound, ensuring environmentally friendly operation, low compound consumption, and reduced operating costs.

After polishing, the sheets pass through a professional cleaning and drying system to remove any residue, watermarks, or contamination before protective film lamination or further surface treatments such as PVD coating, etching, coloring, or decorative processing.

Features of Titanium Super 8K Mirror Polishing Machine

— Designed for titanium sheets and plates with high surface quality requirements
— Ultra-high mirror reflectivity with uniform and directionless gloss
— Stable oscillation system to avoid vibration lines and polishing defects
— Environmentally friendly compound recycling and filtration system
— High efficiency with low operational cost
— Adjustable polishing pressure and transmission speed
— Forward and backward conveying system for flexible processing
— Large polishing heads with high RPM for superior surface brightness
— Fast replacement of polishing heads for easy maintenance
— Automatic thickness adjustment with manual assistance
— Compact and corrosion-resistant machine structure
— Advanced cleaning and drying unit ensuring spotless surface before lamination
— Spacious machine design for convenient maintenance and servicing
— Easy operation with intelligent electrical control system
— Excellent cost-performance ratio for industrial production

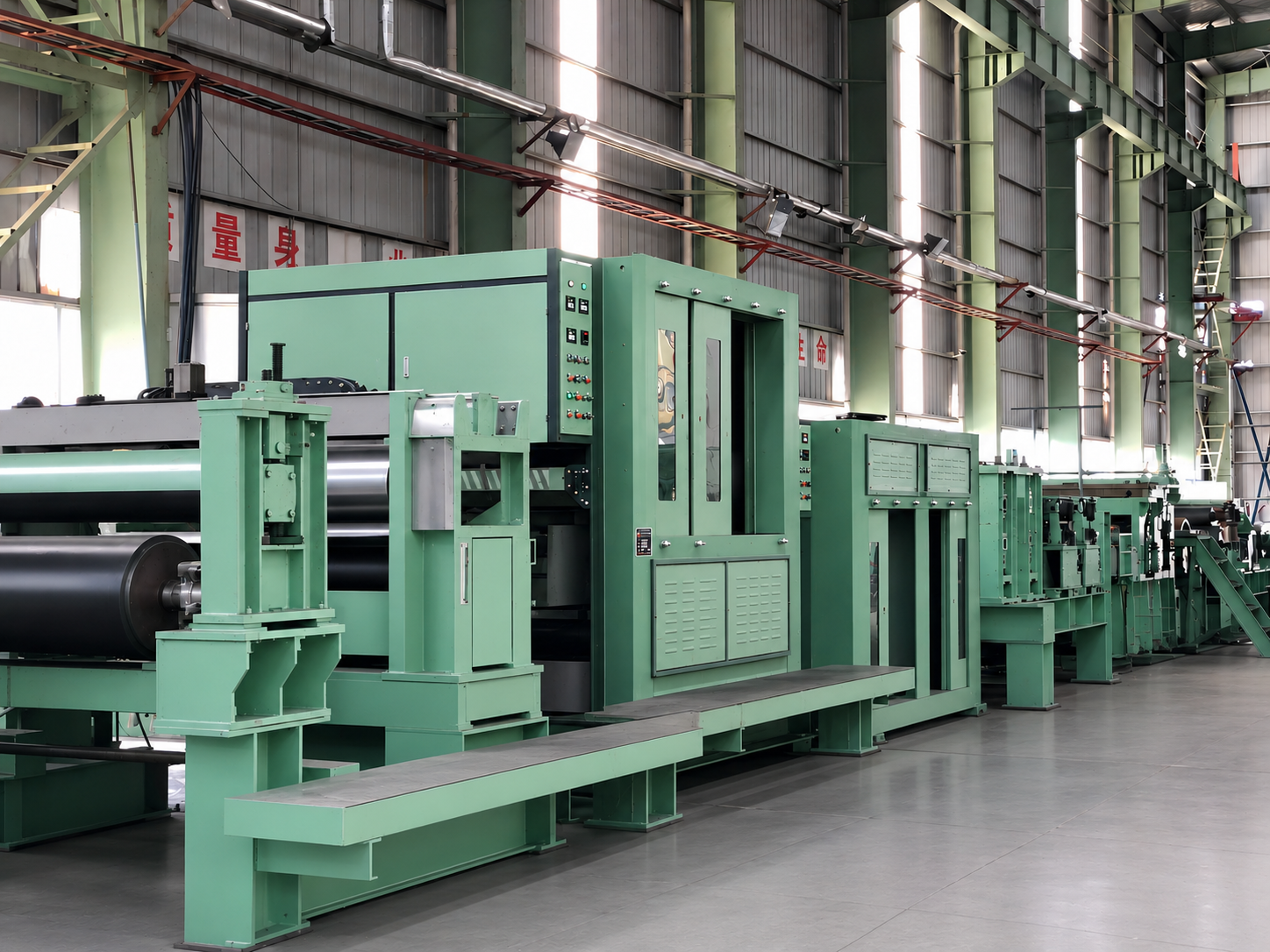

Machine Composition

The Titanium Super 8K Mirror Polishing Line mainly consists of:

Inlet & outlet roller tables
Main grinding and polishing machine
Compound circulation and filtration system
Cleaning & drying unit
Protective film laminator
Electrical control system

Main Parameters

Workpiece Material: Titanium Sheets or Plates
Thickness Range: 0.5–3 mm / 3–6 mm
Useful Width: ≤1250 mm / ≤1550 mm / ≤2050 mm
Useful Length: 1000–6000 mm
Processing Speed: 0.5–1.0 m/min

Customized and non-standard machines can be tailor-made according to customer production requirements.
