Home / Products / 8K (No.8) Mirror Polishing & Buffing

No.8 8K Finishing Mirror Buffing Polishing Machine

8k Mirror polishing Machine, which is used for stainless steel ground(Steel Sheets/Coil Surface) and finished like a mirror, having corrosion-resistant. The mirror polished plate is the substrate for subsequent processing into colored or etched plates.

Inquiry Now Download
Product Details

Product Overview

LEBON 8K Mirror Finishing Machine is designed for high-quality mirror polishing of stainless steel sheets and plates. It produces a bright, uniform, directionless and highly reflective 8K mirror surface, suitable for premium decorative and industrial applications.

The machine integrates grinding, polishing compound circulation, cleaning, drying and protective film lamination processes. After grinding, the stainless steel sheet enters the polishing section, where the polishing compound is evenly applied to the surface and polished by high-speed rotating buffing wheels until a super mirror finish is achieved.

With stable operation, automatic thickness adjustment and an efficient compound recycling system, this machine delivers excellent surface quality, high productivity and low operating cost.

Key Features

Working Process

  1. Grinding Section
    The stainless steel sheet is first processed by grinding wheels or abrasive tools to improve surface flatness and roughness.

  2. Polishing Section
    Polishing compound is continuously supplied to the sheet surface. High-speed buffing wheels polish the surface until a mirror-like finish is achieved.

  3. Compound Recycling System
    Used polishing compound is filtered and recycled for reuse, reducing waste and operating cost.

  4. Cleaning and Drying Section
    After polishing, the sheet is cleaned and dried to remove residual compound and moisture.

  5. Film Laminating Section
    A protective film is applied to the polished surface for safe handling, transportation or further processing.

Technical Specifications

ItemSpecification
Applicable MaterialStainless steel sheet / plate
Surface Finish8K mirror finish
Material Thickness0.5–3 mm, 3–6 mm / customizable
Working Width≤1250 mm, ≤1550 mm, ≤2050 mm / customizable
Working Length1000–6000 mm
Processing Speed0.5–1.0 m/min
Polishing Heads32 heads or customized
Machine TypeAutomatic mirror polishing machine

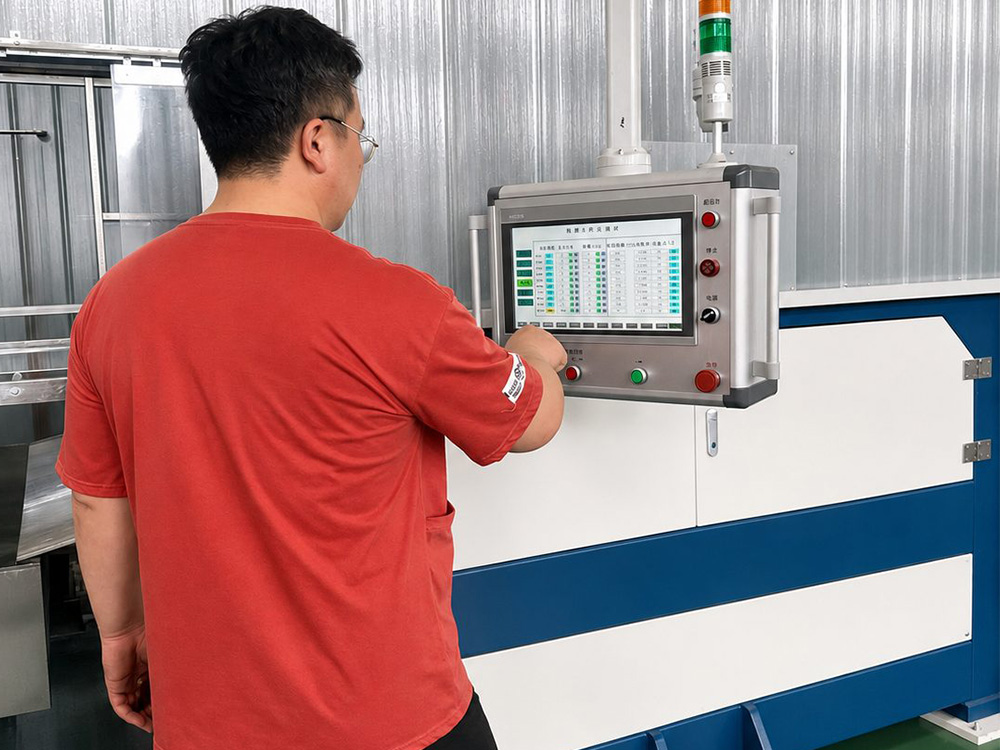

Control SystemCNC / PLC automatic control
Polishing MethodGrinding wheel, Scotch-Brite disc and buffing wheel polishing
Compound SystemFiltration and recycling system
ApplicationStainless steel sheet and plate surface finishing

Applications

LEBON 8K Mirror Finishing Machine is widely used for producing mirror-polished stainless steel sheets and plates for:

Why Choose LEBON

LEBON provides professional metal surface finishing solutions for stainless steel sheets, plates and coils. With advanced design, reliable manufacturing and rich experience in grinding and polishing equipment, LEBON machines help customers achieve stable production, excellent surface quality and long-term operating efficiency.

Our machines can be customized according to material thickness, working width, surface finish requirements and production capacity. From machine design to installation, commissioning and after-sales service, LEBON offers complete technical support for your production line.

Short Description

LEBON 8K Mirror Finishing Machine is a fully automatic stainless steel polishing machine designed to produce a bright, uniform and highly reflective mirror surface on stainless steel sheets and plates. It is ideal for decorative stainless steel, elevator panels, architectural cladding and high-end metal surface finishing applications.

FAQ

What is Super 8K mirror polishing?

Super 8K mirror polishing is a high-precision surface finishing process that produces an ultra-smooth, highly reflective stainless steel surface with excellent gloss and image clarity.

What is the difference between 8K and Super 8K?

Super 8K generally refers to a higher level of mirror finishing with improved reflectivity, lower surface roughness and better surface consistency compared with standard 8K polishing.

What materials can this machine process?

It is suitable for stainless steel sheets, plates and coils. Customized solutions are also available for titanium and aluminum.

Can the machine be customized?

Yes. Lebon can customize the polishing heads, working width, processing speed and production line configuration according to customer requirements.
