SB Grinding Machine

LEBON SB Grinding Machine is designed for producing a soft, smooth and uniform Scotch Brite / SB matte satin finish on stainless steel sheets and plates. It uses non-woven abrasive rollers or Scotch Brite grinding units to improve surface texture, reduce minor marks and create a refined decorative metal surface for high-end applications.

Product Details

Product Overview

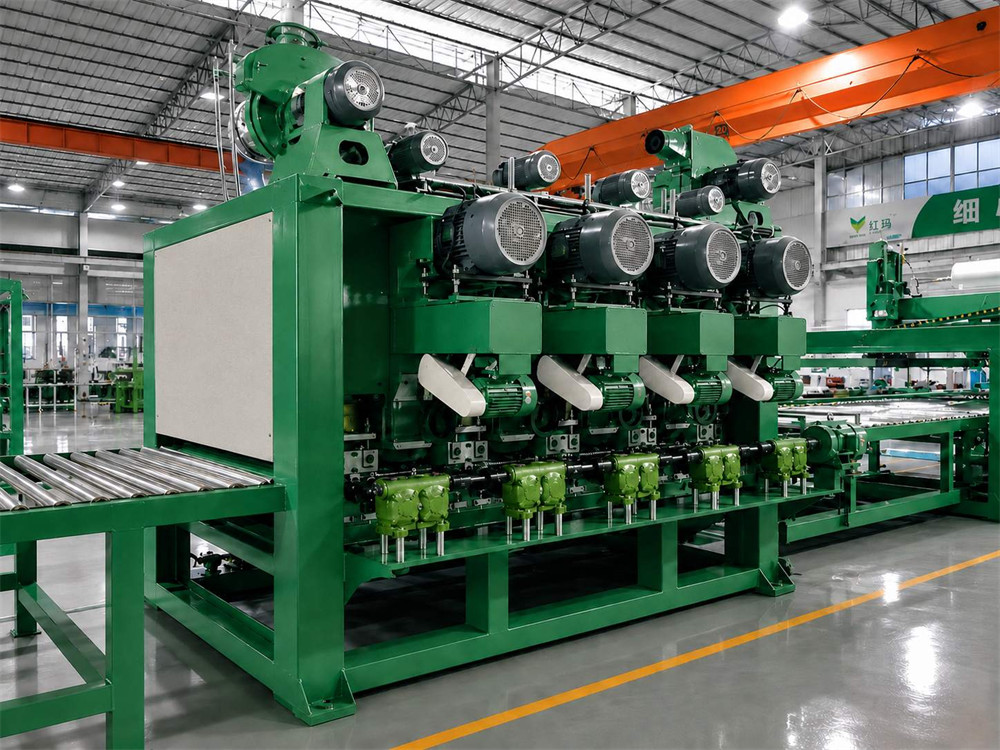

The LEBON SB Grinding Machine is a professional stainless steel surface finishing machine used for Scotch Brite surface treatment. Compared with ordinary abrasive belt grinding, SB grinding creates a softer, finer and more uniform matte surface, making it suitable for decorative stainless steel sheets, elevator panels, appliance panels and architectural metal products.

With stable sheet feeding, adjustable roller pressure, variable conveyor speed and optional dust collection, cleaning, drying and protective film laminating systems, the machine helps customers achieve consistent surface quality and efficient production.

Key Features

Produces soft, uniform and matte SB / Scotch Brite finish
Suitable for stainless steel sheets and plates
Non-woven abrasive roller system for fine satin texture
Adjustable grinding pressure for different sheet thicknesses
Variable conveyor speed for flexible surface effect control
Stable feeding system for consistent surface finishing
Full-width roller contact for uniform center-to-edge quality
Dry or wet processing options available
Dust collection system available for dry grinding
Cleaning and drying unit available for clean surface output
Optional protective film laminating after finishing
PLC and inverter control system for easy operation
Customizable working width, thickness range and roller quantity

Working Process

1. Material Feeding

The stainless steel sheet or plate is fed into the SB grinding machine through the conveyor system. Stable feeding keeps the material flat and ensures consistent surface processing.

2. Surface Pre-Treatment

Before SB grinding, the surface can be cleaned or lightly pre-ground to remove dust, oil stains, minor scratches, oxide marks and surface defects.

3. SB / Scotch Brite Grinding

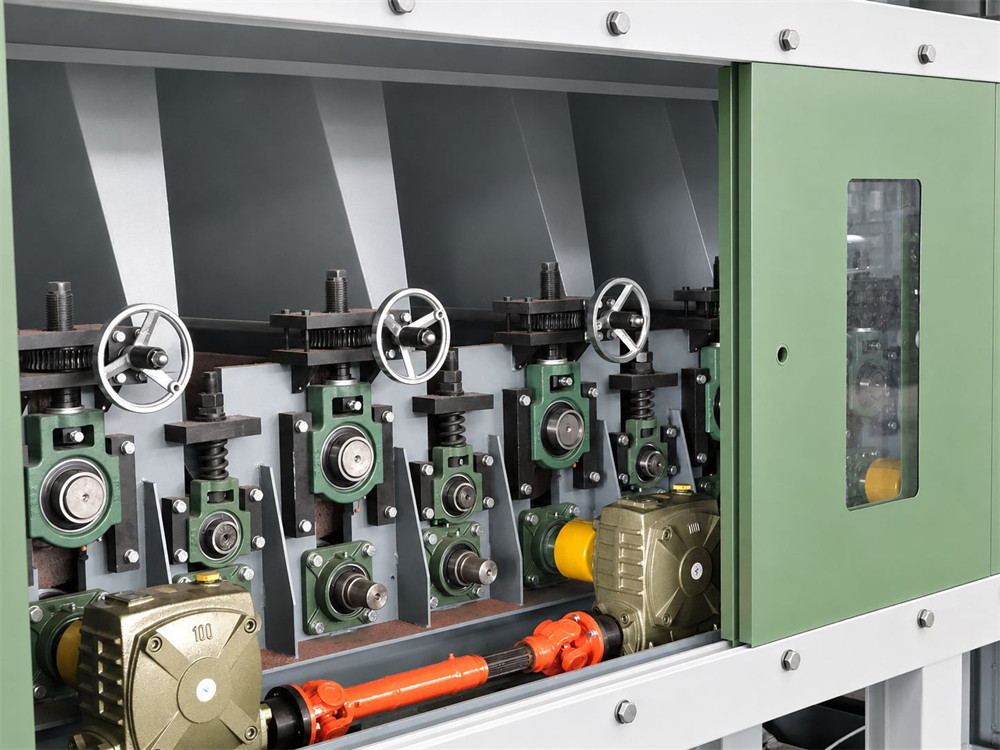

The non-woven Scotch Brite roller or grinding unit contacts the stainless steel surface to create a soft, smooth and uniform matte satin texture.

4. Pressure and Speed Adjustment

Grinding pressure and conveyor speed are adjusted according to sheet thickness, material condition and required SB surface effect. Proper adjustment helps ensure uniform texture and stable surface quality.

5. Dust Collection or Wet Cooling

For dry-type SB grinding, the dust collection system removes grinding dust and abrasive particles. For wet-type processing, coolant or grinding liquid helps reduce heat and improve surface smoothness.

6. Surface Cleaning

After grinding, the surface is cleaned to remove dust, abrasive residue, metal particles and surface contamination.

7. Drying Section

If wet processing or cleaning is used, the drying unit removes moisture from the sheet surface to prevent water marks.

8. Protective Film Laminating

If required, protective film is applied to the finished SB surface to prevent scratches during handling, cutting, transportation and further processing.

9. Finished SB Surface Output

The finished stainless steel sheet has a soft, uniform and matte Scotch Brite surface, suitable for decorative stainless steel, elevator panels, appliance panels and architectural applications.
